Internal lock KMH10.
Working load up to 10T and mast thickness up to 25mm.

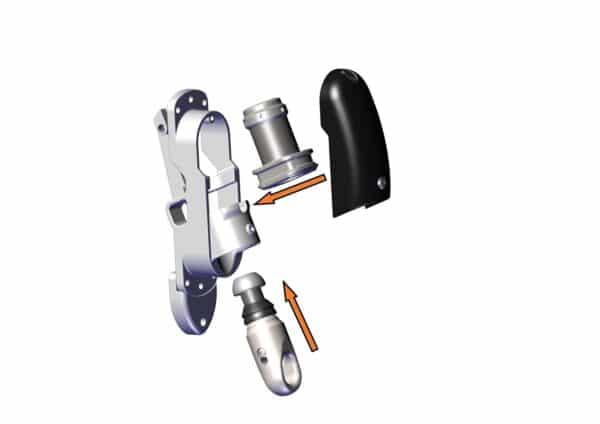

An internal lock is a hook integrated into the mast and dedicated to the sails in front of the mast (staysail, gennaker, codes,…). The KMH lock is particularly innovative and efficient. From the KMH5, the entire locking system is accessible under its cover (2 screws) and can then be removed without tools. Unlike many other locks, the sheave is not under tension once the sail is hooked. This innovation makes it possible to avoid the use of high-load strop and reduces the compression of the mast. For many of our competitors, access to mechanics is almost impossible at sea.
The internal hook is often preferred to the external hook on larger units for aesthetic reasons and usage patterns. A lock (internal or external) makes it possible to completely remove the tension in the halyard. The halyard no longer needs to be sized to hold the load, the halyard jammer is no longer useful, the lock removes the elasticity of the halyard which distorted the sail profiles. The mast compression decreases. KMH : Simple and aesthetic. Reliability above all !
If you want to know more about locks, take the time to read our KarverPedia article on the subject
|Boat size||60 to 110″|
|Breaking load||20,00 T|
|VAT excluded||8 968,63 €|
usually in stock
|Mast cutting (mm)||174,5×75|
|Mast wall thickness (mm)||25|
|Max line space diameter (mm)||10,5|
|Best max halyard (mm)||8|
